About SensorAbout Sensor

The data source of JoinFarm Micro-Weather Sensor includes the daily farm work, the usage of medication and fertilizer by contract farmers in various regions. It also integrates open databases from Taiwan government (including soil, water, fertilizer, pesticides) and weather forecast data from WeatherRisk Explore Inc. to completely collect the agricultural data. JoinFarm Micro-Weather Sensor has gone through long-term tests under outdoor environment with its high stability and weather resistance.

Accurate Monitoring Data sourced from cropland
Accurate Monitoring

Data sourced from cropland

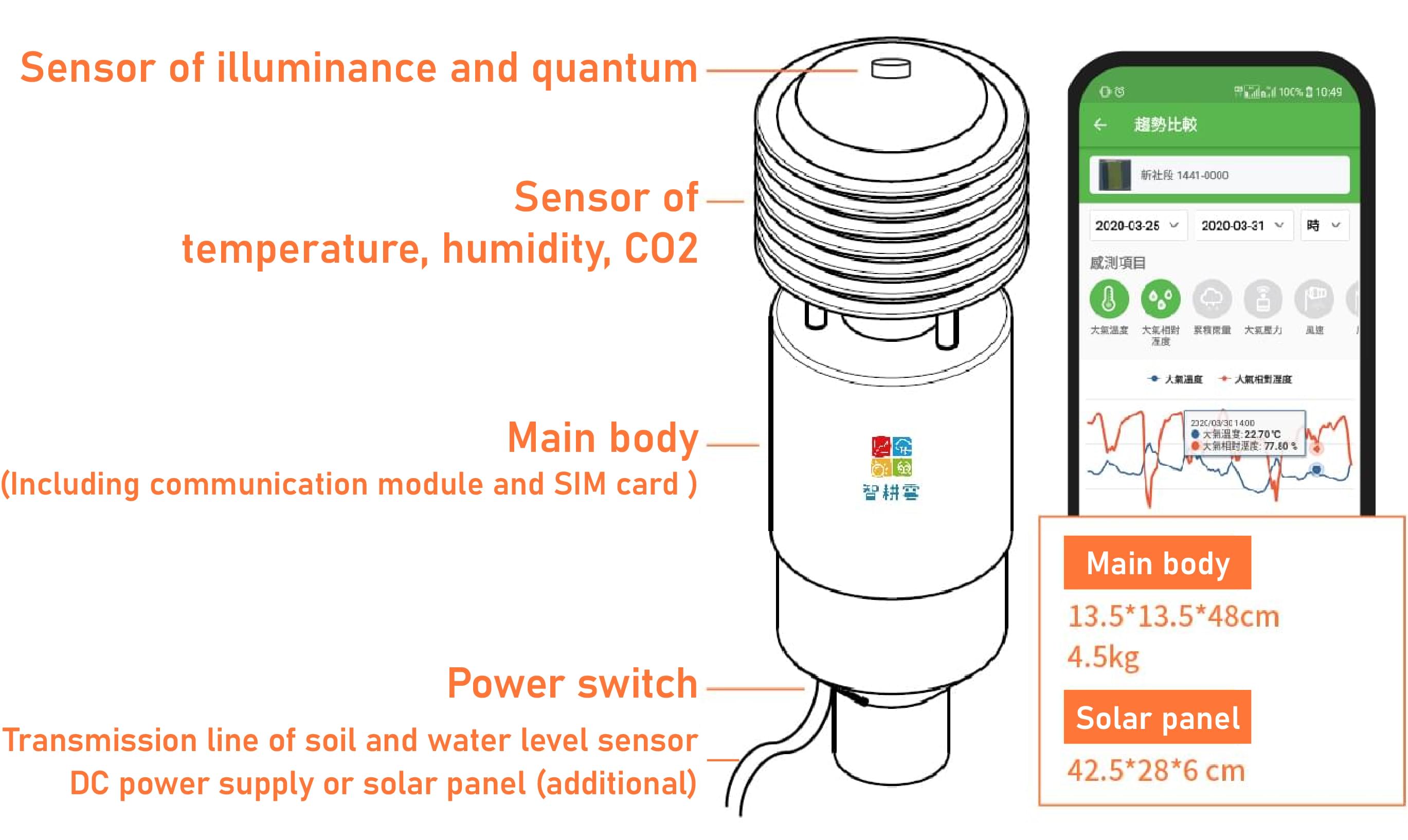

JoinFarm Micro-Weather Sensor helps control three elements of growth - sunlight (illuminance, quantum), air (temperature, humidity, air pressure, CO2), and water (water level). By collecting environmental data, you can control and understand the yield, quality and harvest time of cultivated crops.

In addition, the sensor can be combined with high-accuracy soil sensor equipped with multiple measurement modes, which can change the measurement range of electrical impedance. Besides, it can also measure the difference between Bulk EC and Pore EC.

Sensing items
24/7 monitoring｜Temperature｜Humidity｜CO2｜Pore_EC｜Bulk_EC｜Quantum｜Illuminance

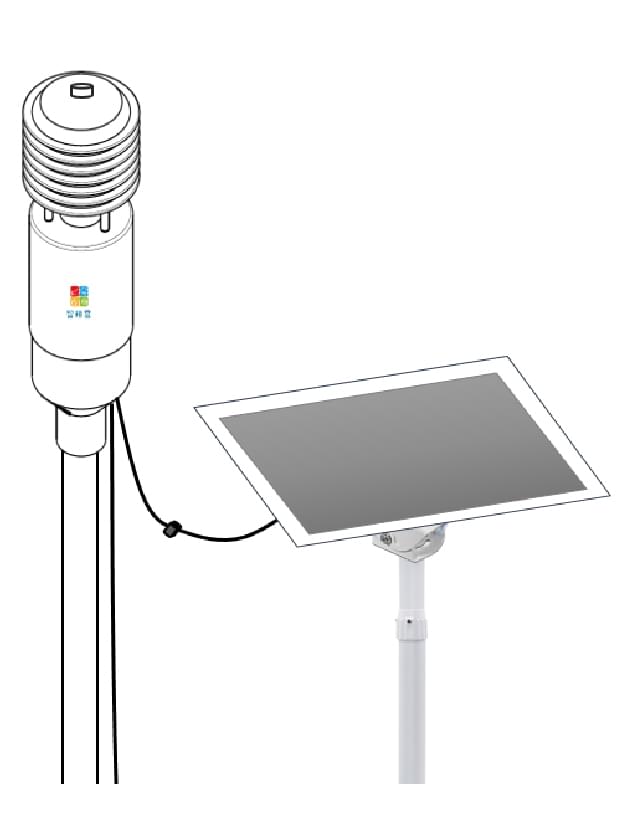

Quick Installation Micro-Weather Sensor
Quick Installation

Micro-Weather Sensor

The sensor is independently developed by Ling Cheng Technology which includes the following features.

  • Easy and fast installation
  • High durability
  • Power saving: 10AH battery capacity, lasting 6 weeks without power supply
  • Multiple communication modes: choosing from 4G, NB IoT, LTE-M, Lora, or wifi
Software & Hardware Integration Smart field management platform
Software & Hardware Integration

Smart field management platform

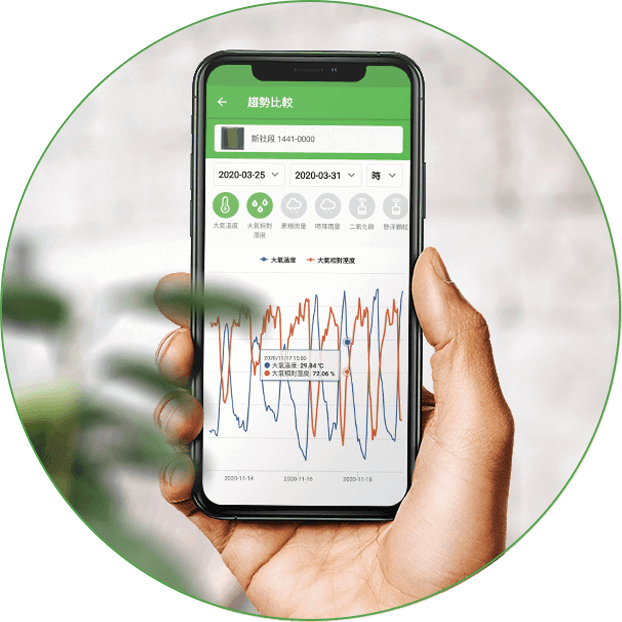

Installing a Micro-Weather Sensor can collect environmental factors such as temperature, humidity, and quantum in real time. Then, the data is transmitted via wireless technology and stored in the database on JoinFarm.

Producers can monitor the cropland environment in real time at home. This not only saves the time spent by contract farmers to patrol croplands and search information on multiple platforms, but also can adjust the decision-making by comparing the records on JoinFarm.

Main functions

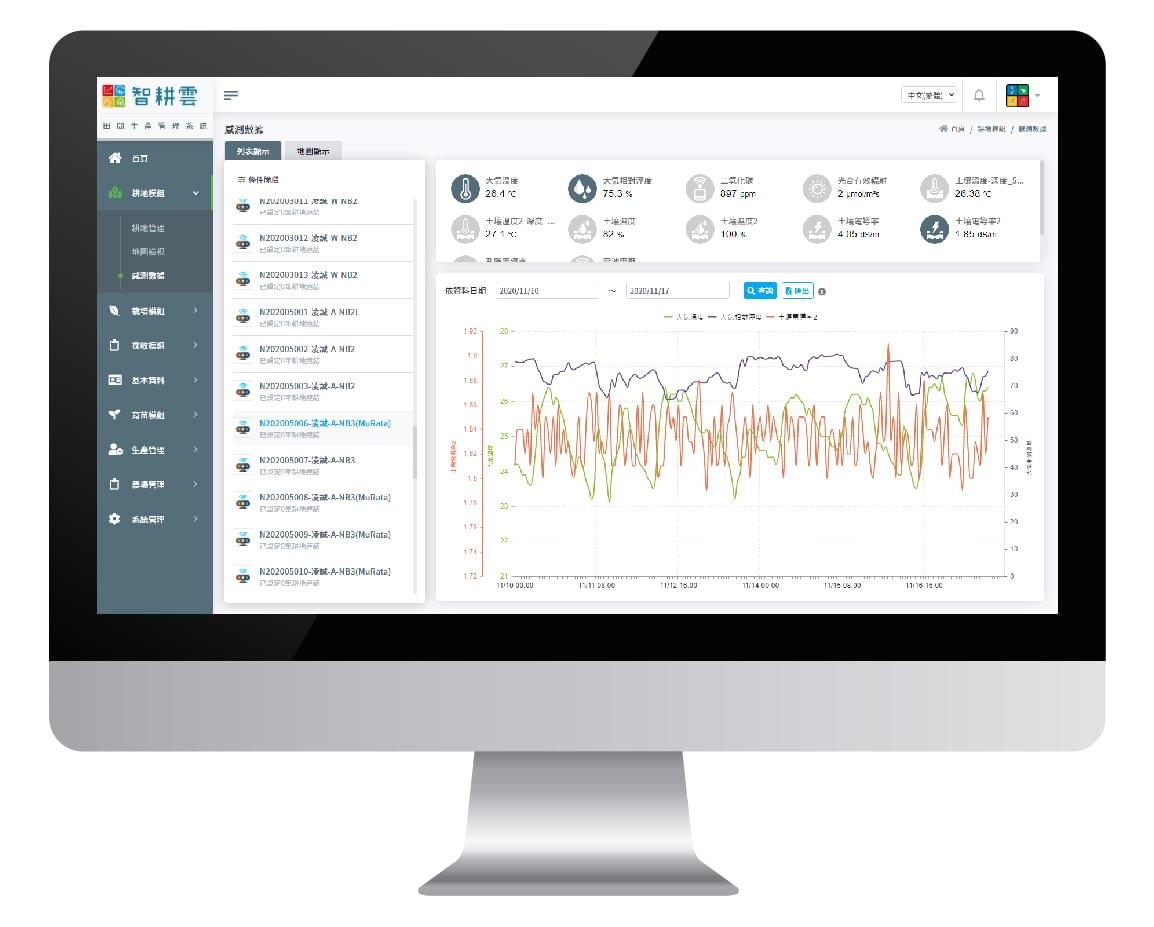

Environmental data monitoring dashboard｜Environmental database｜Remote monitoring｜Weather information integration｜Environmental condition alert｜Maximum and minimum setting of data
Portable & Convenient Mobile patrol sensor
Portable & Convenient

Mobile patrol sensor

The mobile patrol sensor checks soil condition with mobile device, which replacing manual measurement and transcription to reduce mistakes. Then it sends the data back to JoinFarm cloud platform through bluetooth so that the managers can integrate complete records of crop growth and plan harvesting time.

Advantages of mobile patrol sensor

  • High mobility
    ｜Suitable for scattered contracted croplands with its high portability, making it easy to measure different spots
  • Good immediacy
    ｜Displaying data immediately after measuring
  • High accuracy
    ｜Equipped with Pore EC / Bulk EC values, making the measurement more accurate
  • Excellent integration
    ｜Directly connected to JoinFarm cloud platform
  • High applicability
    ｜Applicable to soil and water quality testing

Easy InstallationEasy Installation

Ling Cheng Technology has designed a simple and safe installation method.

Step 1

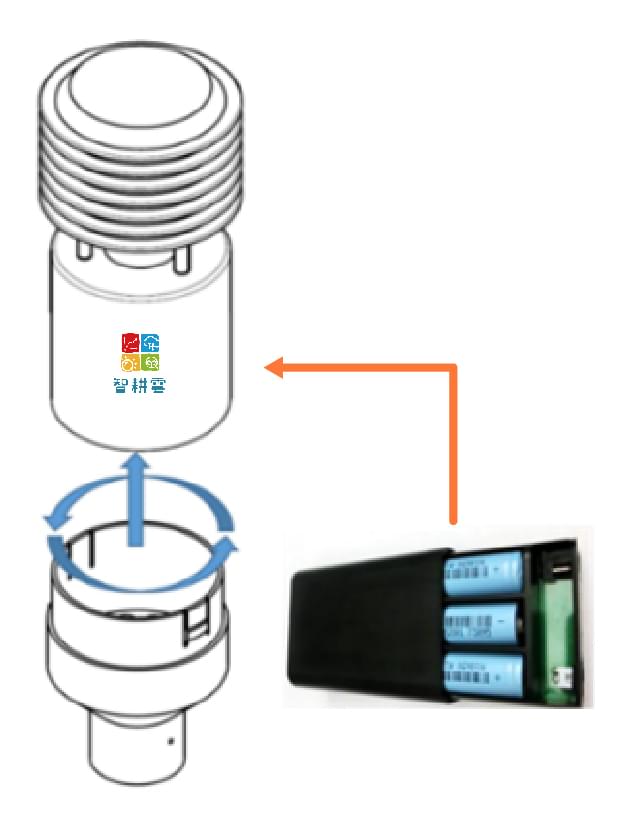

Step 1 Open the case and insert batteries

Open the case and insert batteries

Step 2

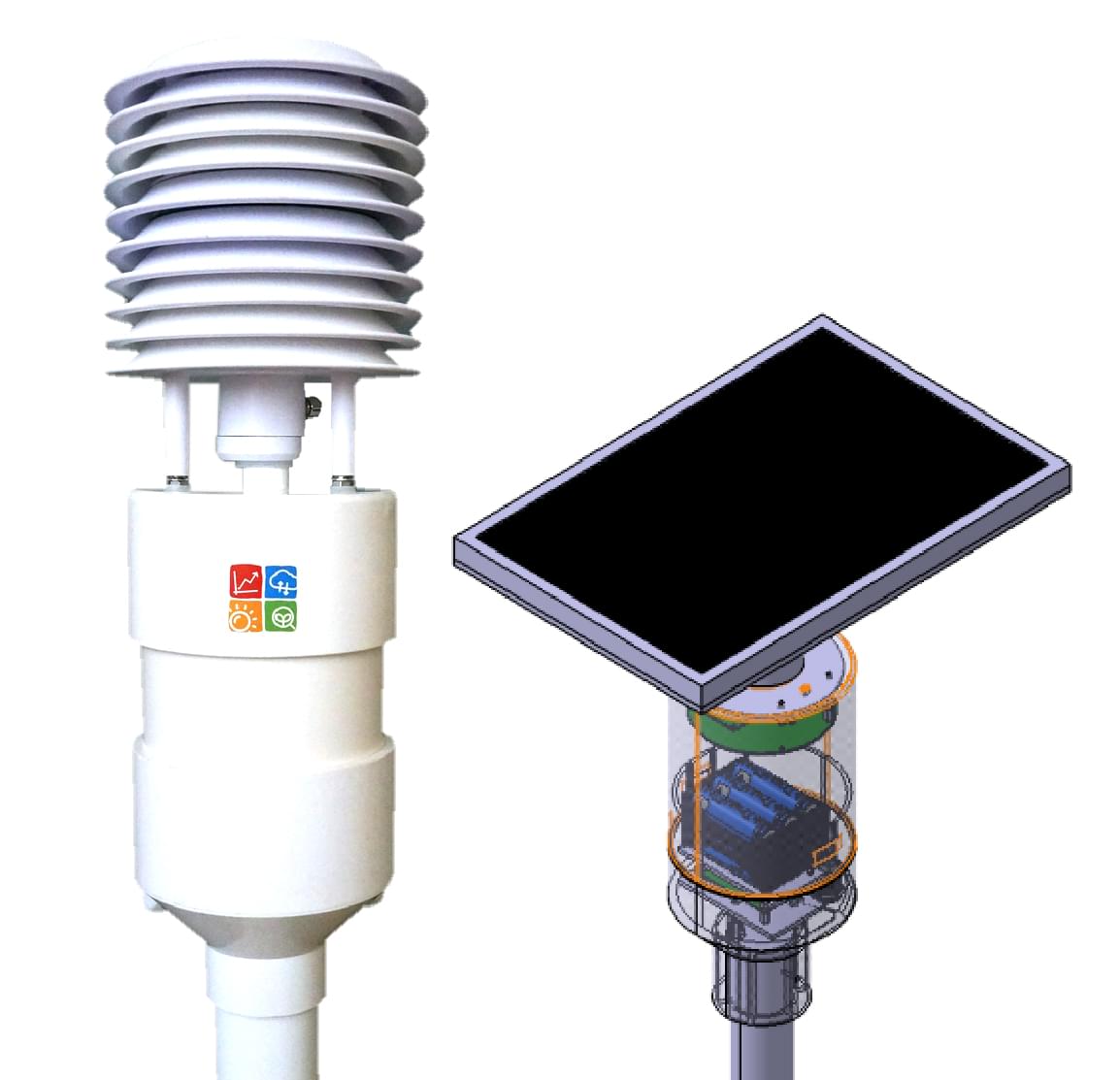

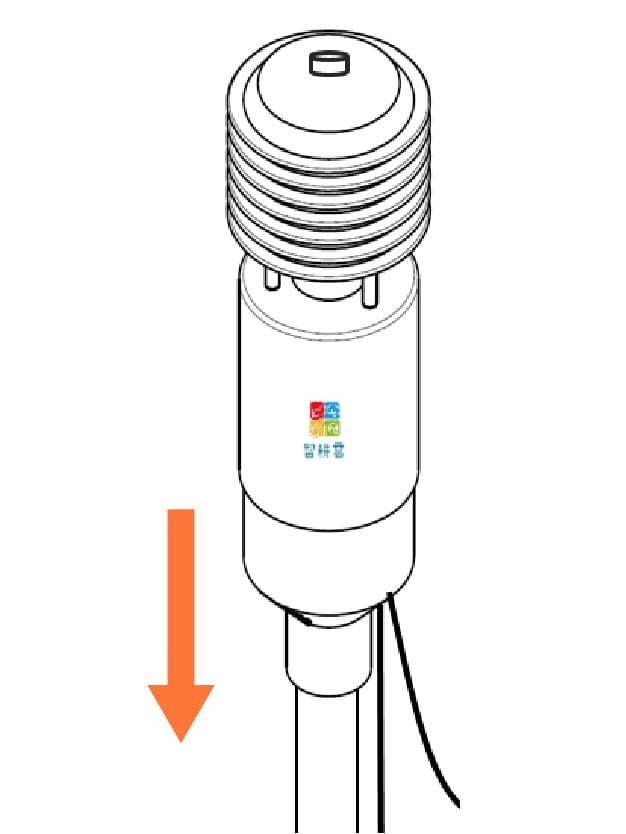

Step 2 Install the solar panel and main body holder

Install the solar panel and main body holder

Step 3
Step 3 Connect the solar power (or DC) to the main body

Connect the solar power (or DC) to the main body

Step 4

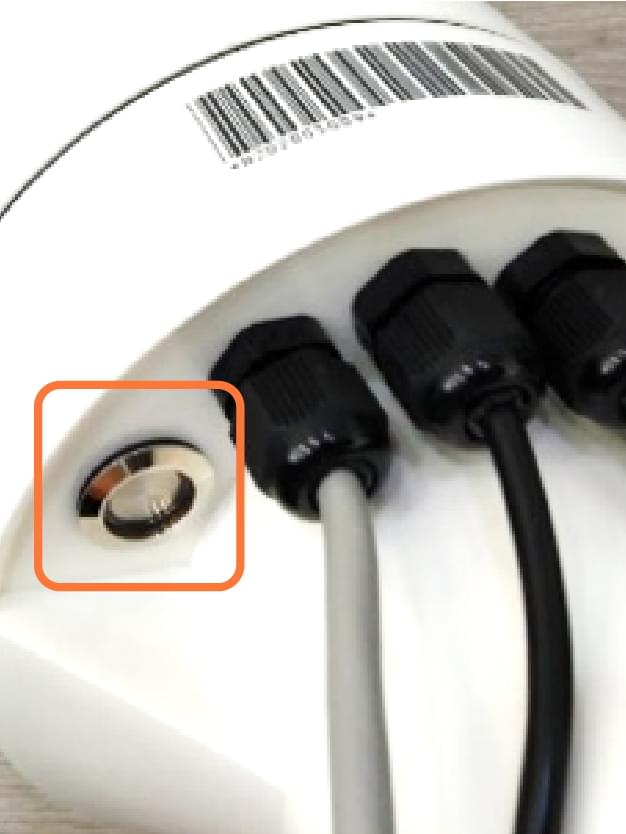

Step 4 Put the soil sensor under the ground, then turn on the power

Put the soil sensor under the ground, then turn on the power

BenefitsBenefits

  • Remote real-time management to adjust the decision and strategy on farming
    Remote real-time management to adjust the decision and strategy on farming
  • Integration of weather information to adapt to different weather conditions
    Integration of weather information to adapt to different weather conditions quickly
  • Control the crop knowledge and reserve the complete data
    Control the crop knowledge and reserve the complete data
  • Accurate data sources which continously increase cropland production
    Accurate data sources which continously increase cropland production
